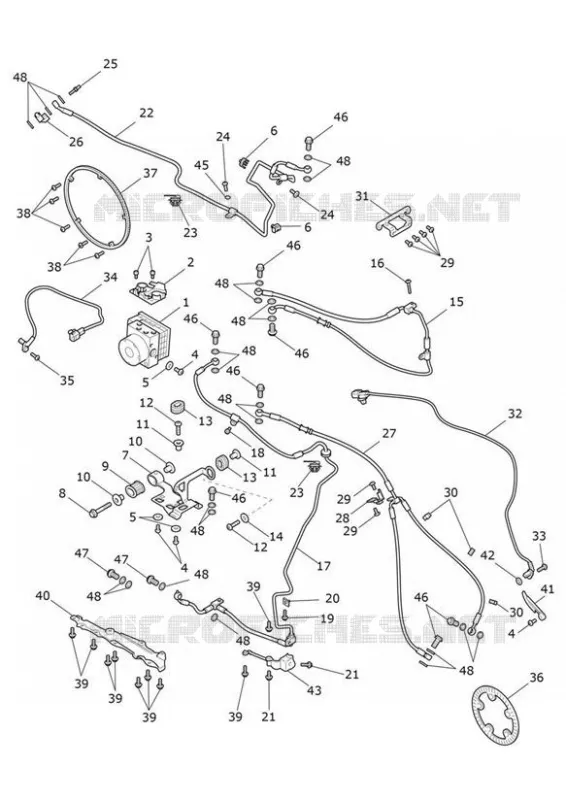

ABS SYSTEM FOR TRIUMPH ROCKET 3 R

FRONT BRAKE MASTER CYLINDER

(1) T2021606

MODULATOR, ABS, IMU, WET

(2) T2021607

ANTI-ROTATION MOULDING, BANJO

(3) T3051055

SCREW, CAP/HD, M5 X 10, SLV, ENC

(4) T3331042

SCREW, PAN/HD, TX, M6 X 12, ENC

(4) T3331042

SCREW, PAN/HD, TX, M6 X 12, ENC

(4) T3331042

SCREW, PAN/HD, TX, M6 X 12, ENC

(5) T3555026

WASHER, 6.4 X 18 X 1.6

(5) T3555026

WASHER, 6.4 X 18 X 1.6

(6) T3700197

CLIP, HOSE, 6.5D, TWIN

(6) T3700197

CLIP, HOSE, 6.5D, TWIN

(7) T2022147

BRACKET, ABS, MODULATOR

(8) T3202307

BOLT, HHF, M8 X 50, SLV

(9) T2022148

RUBBER MOUNT, ABS BRACKET

(10) T3010235

FLANGED SLEEVE, M8

(10) T3010235

FLANGED SLEEVE, M8

(11) T3010710

FLANGED SLEEVE, 6.4 X 9.6 X 13.4

(11) T3010710

FLANGED SLEEVE, 6.4 X 9.6 X 13.4

(12) T3300069

SCREW, PAN HD, TX, M6 X 27, ENC

(12) T3300069

SCREW, PAN HD, TX, M6 X 27, ENC

(13) T3020112

GROMMET, SLOTTED, CASTELLATED

(13) T3020112

GROMMET, SLOTTED, CASTELLATED

(14) T3555046

WASHER, 6.4 X 20 X 1.6

(15) T2021610

BRAKE LINE, M/CYL TO MODULATOR, FRONT

(16) T3330659

SCREW, PAN/HD, TX, M5 X 25, ENC

(17) T2021611

BRAKE LINE, REAR M/CYL TO MODULATOR, FRW

(18) T3050341

SCREW, CAP/HD, M5 X 10, SLV

(19) T3330891

BOLT, RHHF, M5 X 0.8 X 12, S5041

(20) T3350129

NUT, CAPTIVE, M5

(21) T3205063

BOLT, HHF, LGHTD, M6 X 16, SLV

(21) T3205063

BOLT, HHF, LGHTD, M6 X 16, SLV

(22) T2022921

BRAKE LINE, MODULATOR TO CALIPER, REAR

(23) T3700373

CLIP, COUPLER

(23) T3700373

CLIP, COUPLER

(24) T3450290

FIR TREE, M5, DIA 12.1 X 15

(24) T3450290

FIR TREE, M5, DIA 12.1 X 15

(25) T3250027

BANJO BOLT, BLEED, M10 X 30

(26) T2025808

SPACER, ANTI-ROTATION, BRAKE HOSE

(27) T2022922

BRAKE LINE, HEADSTOCK TO CALIPER

(28) T2022992

BRACKET, BRAKE LINE, HEADSTOCK

(29) T3331043

SCREW, PAN/HD, TX, M6 X 12, SLV

(29) T3331043

SCREW, PAN/HD, TX, M6 X 12, SLV

(29) T3331043

SCREW, PAN/HD, TX, M6 X 12, SLV

(30) T3700237

CLIP, TWIN, 3.9 - 6.0

(30) T3700237

CLIP, TWIN, 3.9 - 6.0

(31) T2022111

BRACKET, HOSE, STEERED

(32) T2023514

SENSOR, WHEEL SPEED, CHT, 135

(33) T3330334

SCREW, TX, PAN/HD, M6 X 16, SLV

(34) T2026135

SENSOR, WHEEL SPEED, CHT, 135

(35) T3331044

SCREW, PAN/HD, TX, M6 X 16, SLV

(36) T2022022

PULSE RING, FRONT

(37) T2021618

PULSER RING, REAR, 5 X 187, PCD

(38) T3330728

SCREW, PAN/HD, TX, M5 X 16, ENC

(38) T3330728

SCREW, PAN/HD, TX, M5 X 16, ENC

(39) T3330892

BOLT, RHHF, M5 X 15, S5041

(39) T3330892

BOLT, RHHF, M5 X 15, S5041

(39) T3330892

BOLT, RHHF, M5 X 15, S5041

(39) T3330892

BOLT, RHHF, M5 X 15, S5041

(39) T3330892

BOLT, RHHF, M5 X 15, S5041

(40) T1231322

CABLE, RETAINER, SUMP, PLATE

(41) T2021630

CONDUIT, ABS SENSOR, FRONT

(42) T3552001

WASHER, M6 X 14 X 0.5

(42) T3552002

WASHER, M6 X 14 X 1.0

(42) T3552003

WASHER, M6 X 14 X 1.5

(42) T3552004

WASHER, M6 X 14 X 2.0

(43) T2022956

BRACKET, BRAKE LINE, DISTRIBUTOR

(45) T1151225

O RING, RESTRICTOR

(46) T3250032

BANJO BOLT, M10 X 19

(46) T3250032

BANJO BOLT, M10 X 19

(46) T3250032

BANJO BOLT, M10 X 19

(46) T3250032

BANJO BOLT, M10 X 19

(46) T3250032

BANJO BOLT, M10 X 19

(46) T3250032

BANJO BOLT, M10 X 19

(46) T3250032

BANJO BOLT, M10 X 19

(47) T3250125

BOLT, BANJO, M10 X 21

(47) T3250125

BOLT, BANJO, M10 X 21

(48) T3550229

WASHER, 15.2 X 10 X 1, PLATED

(48) T3550229

WASHER, 15.2 X 10 X 1, PLATED

(48) T3550229

WASHER, 15.2 X 10 X 1, PLATED

(48) T3550229

WASHER, 15.2 X 10 X 1, PLATED

(48) T3550229

WASHER, 15.2 X 10 X 1, PLATED

(48) T3550229

WASHER, 15.2 X 10 X 1, PLATED

(48) T3550229

WASHER, 15.2 X 10 X 1, PLATED

(48) T3550229

WASHER, 15.2 X 10 X 1, PLATED

(48) T3550229

WASHER, 15.2 X 10 X 1, PLATED

(48) T3550229

WASHER, 15.2 X 10 X 1, PLATED

(48) T3550229

WASHER, 15.2 X 10 X 1, PLATED

	Part number	Description	Qty
# 1	T2021606	MODULATOR, ABS, IMU, WET	£1 635,48
# 2	T2021607	ANTI-ROTATION MOULDING, BANJO	£8,46
# 3	T3051055	SCREW, CAP/HD, M5 X 10, SLV, ENC	£1,99
# 4	T3331042	SCREW, PAN/HD, TX, M6 X 12, ENC	£0,92
# 5	T3555026	WASHER, 6.4 X 18 X 1.6	£0,85
# 6	T3700197	CLIP, HOSE, 6.5D, TWIN	£5,22
# 7	T2022147	BRACKET, ABS, MODULATOR	£51,11
# 8	T3202307	BOLT, HHF, M8 X 50, SLV	£4,36
# 9	T2022148	RUBBER MOUNT, ABS BRACKET	£3,65
# 10	T3010235	FLANGED SLEEVE, M8	£11,18
# 11	T3010710	FLANGED SLEEVE, 6.4 X 9.6 X 13.4	£2,69
# 12	T3300069	SCREW, PAN HD, TX, M6 X 27, ENC	£1,43
# 13	T3020112	GROMMET, SLOTTED, CASTELLATED	£2,56
# 14	T3555046	WASHER, 6.4 X 20 X 1.6	£2,75
# 15	T2021610	BRAKE LINE, M/CYL TO MODULATOR, FRONT	Not available	£0,00
# 16	T3330659	SCREW, PAN/HD, TX, M5 X 25, ENC	£2,45
# 17	T2021611	BRAKE LINE, REAR M/CYL TO MODULATOR, FRW	£94,91
# 18	T3050341	SCREW, CAP/HD, M5 X 10, SLV	£2,38
# 19	T3330891	BOLT, RHHF, M5 X 0.8 X 12, S5041	£2,12
# 20	T3350129	NUT, CAPTIVE, M5	£2,22
# 21	T3205063	BOLT, HHF, LGHTD, M6 X 16, SLV	£2,29
# 22	T2022921	BRAKE LINE, MODULATOR TO CALIPER, REAR	Not available	£0,00
# 23	T3700373	CLIP, COUPLER	£1,31
# 24	T3450290	FIR TREE, M5, DIA 12.1 X 15	£0,90
# 25	T3250027	BANJO BOLT, BLEED, M10 X 30	£10,93
# 26	T2025808	SPACER, ANTI-ROTATION, BRAKE HOSE	Not available	£0,00
# 27	T2022922	BRAKE LINE, HEADSTOCK TO CALIPER	Not available	£0,00
# 28	T2022992	BRACKET, BRAKE LINE, HEADSTOCK	£6,58
# 29	T3331043	SCREW, PAN/HD, TX, M6 X 12, SLV	£0,62
# 30	T3700237	CLIP, TWIN, 3.9 - 6.0	Not available	£0,00
# 31	T2022111	BRACKET, HOSE, STEERED	£5,10
# 32	T2023514	SENSOR, WHEEL SPEED, CHT, 135	£120,38
# 33	T3330334	SCREW, TX, PAN/HD, M6 X 16, SLV	£1,72
# 34	T2026135	SENSOR, WHEEL SPEED, CHT, 135	£124,13
# 35	T3331044	SCREW, PAN/HD, TX, M6 X 16, SLV	£0,62
# 36	T2022022	PULSE RING, FRONT	£141,49
# 37	T2021618	PULSER RING, REAR, 5 X 187, PCD	£144,80
# 38	T3330728	SCREW, PAN/HD, TX, M5 X 16, ENC	£0,62
# 39	T3330892	BOLT, RHHF, M5 X 15, S5041	£0,74
# 40	T1231322	CABLE, RETAINER, SUMP, PLATE	£12,25
# 41	T2021630	CONDUIT, ABS SENSOR, FRONT	£6,24
# 42	T3552001	WASHER, M6 X 14 X 0.5	£1,18
# 42	T3552002	WASHER, M6 X 14 X 1.0	£1,18
# 42	T3552003	WASHER, M6 X 14 X 1.5	£1,18
# 42	T3552004	WASHER, M6 X 14 X 2.0	£1,25
# 43	T2022956	BRACKET, BRAKE LINE, DISTRIBUTOR	£13,86
# 45	T1151225	O RING, RESTRICTOR	£1,33
# 46	T3250032	BANJO BOLT, M10 X 19	£3,92
# 47	T3250125	BOLT, BANJO, M10 X 21	£4,58
# 48	T3550229	WASHER, 15.2 X 10 X 1, PLATED	£0,74

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Triumph. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the ABS SYSTEM of your Triumph ROCKET 3 R of Rocket-3. Let us know if you have any questions.
