EVAPORATIVE LOSS CONTROL SYSTEM - US CAL - TW - HK - CA & TH ONLY

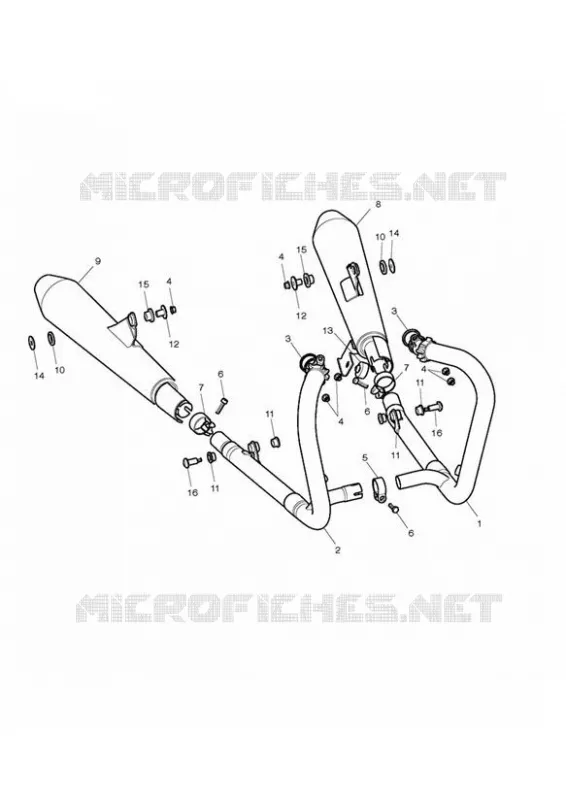

EXHAUST SYSTEM FOR TRIUMPH BONNEVILLE EFI & SE

FUEL PUMP & FITTINGS

(1) T2206003

EXH HEADER ASSY, CHROMED, CYL 1

(1) T2206190

HEADER ASSY, CHROMED, CYL 1

(1) T2206220

HDR ASSY, CHRMD, CYL 1, NON-CAT

(2) T2206004

EXH HEADER ASSY, CHROMED, CYL 2

(2) T2206195

HEADER ASSY, CHROMED, CYL 2

(2) T2206225

HDR ASSY, CHRMD, CYL 2, NON-CAT

(3) T2200229

EXHAUST PIPE SEALING RING

(3) T2200229

EXHAUST PIPE SEALING RING

(4) T3350004

LOCKNUT, FLANGED, M8 X 1.25

(4) T3350004

LOCKNUT, FLANGED, M8 X 1.25

(4) T3350004

LOCKNUT, FLANGED, M8 X 1.25

(4) T3350004

LOCKNUT, FLANGED, M8 X 1.25

(5) T2201675

CLAMP, EXHAUST, S/S

(6) T3050113

BOLT, SKT HD, M8 X 30, S/S

(6) T3050113

BOLT, SKT HD, M8 X 30, S/S

(6) T3050113

BOLT, SKT HD, M8 X 30, S/S

(7) T2201695

CLAMP, EXHAUST, POLISHED

(7) T2201695

CLAMP, EXHAUST, POLISHED

(8) T2204999

SILENCER, EXHAUST, LH, CHROME

(8) T2206475

SILENCER, EXHAUST, CAT, LH

(8) T2206476

SILENCER, EXHAUST, CATALYST, LH

(8) T2206485

SILENCER, EXHAUST, LH, CAT C4

(8) T2206486

SILENCER, EXHAUST, LH, C4, CAT

(9) T2206480

SILENCER, EXHAUST, CAT, RH

(9) T2206482

SILENCER, EXHAUST, CATALYST, RH

(9) T2206490

SILENCER, EXHAUST, RH, CAT C4

(9) T2206491

SILENCER, EXHAUST, RH, C4, CAT

(9) T2209444

SILENCER, EXHAUST, RH, CHROME

(10) T3551553

WASHER, RUBBER

(10) T3551553

WASHER, RUBBER

(11) T2200387

BUSH, RUBBER

(11) T2200387

BUSH, RUBBER

(11) T2200387

BUSH, RUBBER

(11) T2200387

BUSH, RUBBER

(12) T3010096

FLANGED SLEEVE, M8 X 12.8 X 17.2

(12) T3010096

FLANGED SLEEVE, M8 X 12.8 X 17.2

(13) T2200317

STOP, CENTRESTAND

(14) T3550331

WASHER, 8.5 X 30 X 2

(14) T3550331

WASHER, 8.5 X 30 X 2

(15) T2200213

BUSH, RUBBER

(15) T2200213

BUSH, RUBBER

(16) T2218053

BOLT, THIRD MOUNT

(16) T2218053

BOLT, THIRD MOUNT

	Part number	Description	Qty
# 1	T2206003	EXH HEADER ASSY, CHROMED, CYL 1	Unit Price Incl. Tax £398,22
# 1	T2206190	HEADER ASSY, CHROMED, CYL 1	Unit Price Incl. Tax £398,22
# 1	T2206220	HDR ASSY, CHRMD, CYL 1, NON-CAT	Unit Price Incl. Tax £398,22
# 2	T2206004	EXH HEADER ASSY, CHROMED, CYL 2	Unit Price Incl. Tax £398,22
# 2	T2206195	HEADER ASSY, CHROMED, CYL 2	Unit Price Incl. Tax £398,22
# 2	T2206225	HDR ASSY, CHRMD, CYL 2, NON-CAT	Unit Price Incl. Tax £398,22
# 3	T2200229	EXHAUST PIPE SEALING RING	Unit Price Incl. Tax £9,50
# 4	T3350004	LOCKNUT, FLANGED, M8 X 1.25	Unit Price Incl. Tax £1,55
# 5	T2201675	CLAMP, EXHAUST, S/S	Unit Price Incl. Tax £6,73
# 6	T3050113	BOLT, SKT HD, M8 X 30, S/S	Unit Price Incl. Tax £2,63
# 7	T2201695	CLAMP, EXHAUST, POLISHED	Unit Price Incl. Tax £7,19
# 8	T2204999	SILENCER, EXHAUST, LH, CHROME	Unit Price Incl. Tax £443,21
# 8	T2206475	SILENCER, EXHAUST, CAT, LH	Unit Price Incl. Tax £443,21	Special offer £443,21
# 8	T2206476	SILENCER, EXHAUST, CATALYST, LH	Unit Price Incl. Tax £443,21
# 8	T2206485	SILENCER, EXHAUST, LH, CAT C4	Unit Price Incl. Tax £443,21
# 8	T2206486	SILENCER, EXHAUST, LH, C4, CAT	Unit Price Incl. Tax £443,21
# 9	T2206480	SILENCER, EXHAUST, CAT, RH	Unit Price Incl. Tax £443,21
# 9	T2206482	SILENCER, EXHAUST, CATALYST, RH	Unit Price Incl. Tax £443,21
# 9	T2206490	SILENCER, EXHAUST, RH, CAT C4	Unit Price Incl. Tax £443,21
# 9	T2206491	SILENCER, EXHAUST, RH, C4, CAT	Unit Price Incl. Tax £443,21
# 9	T2209444	SILENCER, EXHAUST, RH, CHROME	Unit Price Incl. Tax £443,21
# 10	T3551553	WASHER, RUBBER	Unit Price Incl. Tax £4,82
# 11	T2200387	BUSH, RUBBER	Unit Price Incl. Tax £3,47
# 12	T3010096	FLANGED SLEEVE, M8 X 12.8 X 17.2	Unit Price Incl. Tax £8,03
# 13	T2200317	STOP, CENTRESTAND	Unit Price Incl. Tax £4,43
# 14	T3550331	WASHER, 8.5 X 30 X 2	Unit Price Incl. Tax £1,85
# 15	T2200213	BUSH, RUBBER	Unit Price Incl. Tax £2,14
# 16	T2218053	BOLT, THIRD MOUNT	Unit Price Incl. Tax £6,23

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Triumph. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Triumph, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
