MAIN FRAME & FITINGS

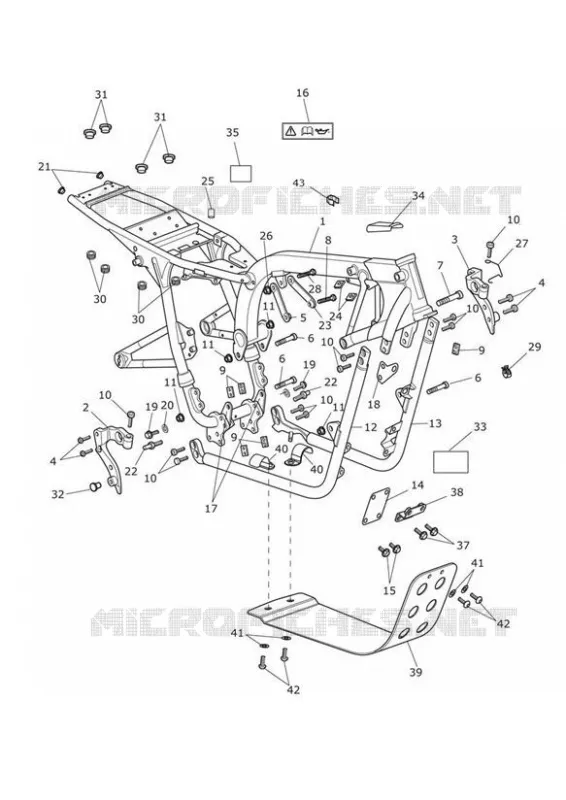

MAIN FRAME & FITINGS FOR TRIUMPH BONNEVILLE EFI & SE

MUDGUARDS

Item numbers

FRAME ASSY, WORLD

T2075318

£1 771,74

Unit Price Incl. Tax

FRAME ASSY, AMERICAS

T2075319

£1 771,74

Unit Price Incl. Tax

FRAME ASSY, CANADA

T2075321

£1 771,74

Unit Price Incl. Tax

FRAME ASSY, CALIFORNIA

T2075323

£1 771,74

Unit Price Incl. Tax

FRAME ASSY, HK & TW

T2075343

Not available

OUTRIGGER

T2075061

£114,47

Unit Price Incl. Tax

OUTRIGGER

T2075062

£114,47

Unit Price Incl. Tax

SCREW, CAP HD, M10 X 23, SLV

T3050402

£4,57

Unit Price Incl. Tax

BRACKET

T2075057

£22,61

Unit Price Incl. Tax

SCREW, HHF, M12 X 1.25 X 130

T3334635

£6,60

Unit Price Incl. Tax

BOLT, TX, M12 X 170, 10.9, SLV

T3332528

£5,30

Unit Price Incl. Tax

BOLT, HHF, M12 X 55, 10.9, SLV

T3151021

£4,40

Unit Price Incl. Tax

BRACKET, M10

T2075055

£10,82

Unit Price Incl. Tax

SCREW, CAP/HD, M10 X 1.25 X 35, SLV

T3050227

Not available

LOCKNUT, FLGD, M12 X 1.25

T3350234

£4,36

Unit Price Incl. Tax

CRADLE, RH, FLAME RED

T2075281

Not available

CRADLE, LH, FLAME RED

T2075280

Not available

PLATE STIFFENER

T2075056

£36,77

Unit Price Incl. Tax

BOLT, HHF, LGHTD, M8 X 18, SLV

T3205156

£1,15

Unit Price Incl. Tax

LABEL, ENGINE OIL

T3900136

£2,03

Unit Price Incl. Tax

ENGINE MOUNTING

T2075008

£25,27

Unit Price Incl. Tax

BRACKET

T2075034

£9,62

Unit Price Incl. Tax

SCREW, M10 X 30, ENC

T3332162

£4,69

Unit Price Incl. Tax

WASHER, 10.5 X 21 X 1.22

T3555009

£0,80

Unit Price Incl. Tax

CAP

T3450060

£1,00

Unit Price Incl. Tax

MOUNTING PIN

T2074993

£8,18

Unit Price Incl. Tax

BRACKET

T2075068

£22,61

Unit Price Incl. Tax

NUT, CAPTIVE, U-TYPE, M5, SLV

T3351002

£1,70

Unit Price Incl. Tax

CAP, VACUUM CONNECTION

T1241012

£2,10

Unit Price Incl. Tax

LOCKNUT, FLANGED, M8 X 1.25

T3350004

£1,74

Unit Price Incl. Tax

GUIDE WIRE

T2082120

£3,60

Unit Price Incl. Tax

BOLT, HHF, M8 X 35, SLV

T3202319

£1,88

Unit Price Incl. Tax

CLIP, CABLE, 14.3 X 10

T3700108

£2,33

Unit Price Incl. Tax

GROMMET, DIA 13 X 1.8

T3021100

£2,03

Unit Price Incl. Tax

FLANGED SLEEVE, 6.4 X 10 X 8.5

T3010702

£4,13

Unit Price Incl. Tax

PLUG, M10

T3450015

£1,00

Unit Price Incl. Tax

LABEL, FRAME MODIFICATION

T3900169

£3,25

Unit Price Incl. Tax

RUBBING STRIP

T2072702

£37,49

Unit Price Incl. Tax

LABEL, ECE

T3900634

Not available

BOLT, HHF, LGHTD, M8 X20, SLV

T3205254

£1,15

Unit Price Incl. Tax

BRACKET ASSY, FRONT, SKID PLATE

T2075154

£23,10

Unit Price Incl. Tax

SKID PLATE, BLACK

T2075152

£159,00

Unit Price Incl. Tax

BRACKET ASSY, REAR, SKID PLATE

T2075158

Not available

WASHER, HARDENED, 8.2 X 18.7 X 2

T3550184

£1,61

Unit Price Incl. Tax

SCREW, BUT/HD, TX, M8 X 20

T3335011

£2,50

Unit Price Incl. Tax

CLIP, BRAKE HOSE

T3700233

£4,20

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Triumph. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Triumph, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
