GEAR CHANGE MECHANISM - EXCLUDING 675R – UP TO 540562 (INCLUDING 540615 & 540625)

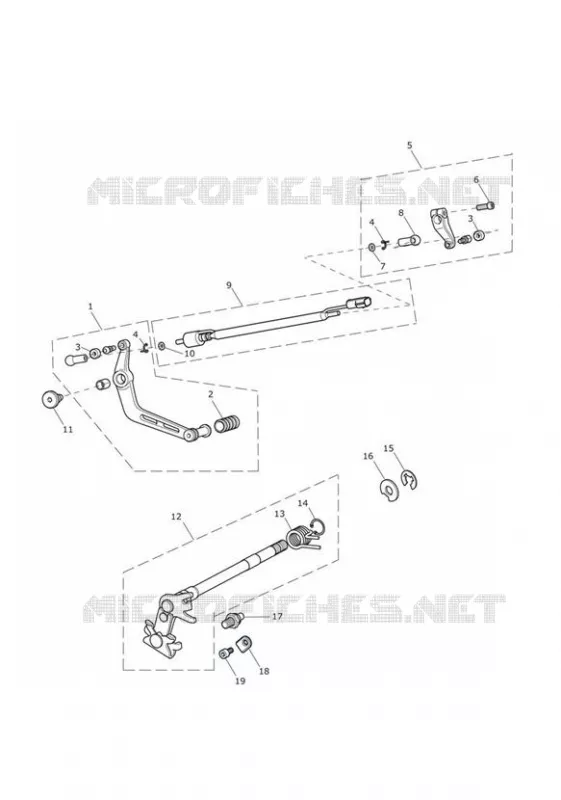

GEARCHANGE MECHANISM ASSY - DAYTONA 675R ONLY FOR TRIUMPH DAYTONA 675, 675R & SE

REAR SUSPENSION LINKAGE

(1) T2082029

GEARCHANGE PEDAL ASSEMBLY

(2) T2080529

RUBBER, GEARCHANGE PEDAL

(3) T2080532

SEAL, GEARCHANGE

(3) T2080532

SEAL, GEARCHANGE

(4) T2081666

CLIP, WIRE RETENTION

(4) T2081666

CLIP, WIRE RETENTION

(5) T2082079

CLAMP, LINKAGE, ASSY

(6) T3205066

BOLT, HHF, LGHTD, M6 X 20, SLV

(7) T3350307

NUT, M6, LH, BLACK

(8) T2080992

BALL JOINT ASSY, LH THREAD

(9) T2082216

QUICKSHIFTER ASSY, STANDARD SHIFT

(10) T2082217

HALFNUT, M6, RH THREAD

(11) T3331614

BOLT, SHLD, M8, SLV ENC

(12) T1190370

GEARCHANGE MECHANISM ASSY

(13) T1190002

GEARCHANGE, RETURN SPRING

(14) T3500099

CIRCLIP, EXTERNAL, 14MM SHAFT

(15) T3500044

E CIRCLIP

(16) T3550134

THRUST WASHER, 24.5X12X1.2

(17) T1190003

PIN, SPRING ABUTMENT

(18) T1190207

KEEPER PLATE

(19) T3051069

SCREW, CAP/HD, M6 X 10, ENC, RAW

	Part number	Description	Qty
# 1	T2082029	GEARCHANGE PEDAL ASSEMBLY	£88,15
# 2	T2080529	RUBBER, GEARCHANGE PEDAL	Not available	£0,00
# 3	T2080532	SEAL, GEARCHANGE	Not available	£0,00
# 4	T2081666	CLIP, WIRE RETENTION	Not available	£0,00
# 5	T2082079	CLAMP, LINKAGE, ASSY	Not available	£0,00
# 6	T3205066	BOLT, HHF, LGHTD, M6 X 20, SLV	£2,98
# 7	T3350307	NUT, M6, LH, BLACK	£1,00
# 8	T2080992	BALL JOINT ASSY, LH THREAD	£15,38
# 9	T2082216	QUICKSHIFTER ASSY, STANDARD SHIFT	£322,72
# 10	T2082217	HALFNUT, M6, RH THREAD	£1,49
# 11	T3331614	BOLT, SHLD, M8, SLV ENC	£6,59
# 12	T1190370	GEARCHANGE MECHANISM ASSY	£110,47
# 13	T1190002	GEARCHANGE, RETURN SPRING	Not available	£0,00
# 14	T3500099	CIRCLIP, EXTERNAL, 14MM SHAFT	£1,00
# 15	T3500044	E CIRCLIP	£0,62
# 16	T3550134	THRUST WASHER, 24.5X12X1.2	£2,22
# 17	T1190003	PIN, SPRING ABUTMENT	£12,14
# 18	T1190207	KEEPER PLATE	£13,45
# 19	T3051069	SCREW, CAP/HD, M6 X 10, ENC, RAW	£0,85
