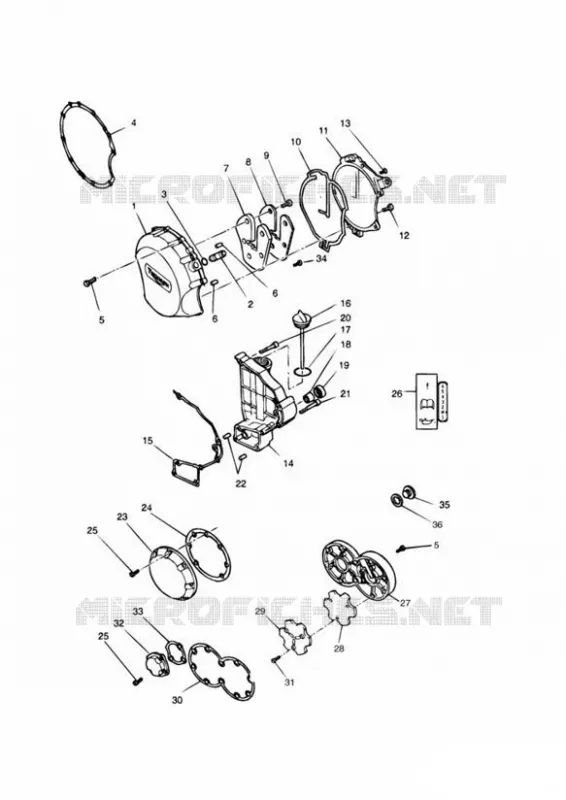

ENGINE COVERS 3 CYLINDER FOR TRIUMPH DAYTONA 1200, 900 & SUPER III

ENGINE COVERS 3 CYLINDER for Triumph DAYTONA 1200, 900 & SUPER III

(1)  1260344-T0301
CLUTCH COVER, BLACK

(2)  1260450-T0301
FITTING

(3)  3600045-T0301
O RING

(4)  T1260206
GASKET, CLUTCH COVER

(5)  T3331102
BOLT, HHF, M6 X 25, S/S

(5)  T3331102
BOLT, HHF, M6 X 25, S/S

(6)  T3000005
DOWEL, DIA 6.0 X 16 Part information

(6)  T3000005
DOWEL, DIA 6.0 X 16 Part information

(7)  1260380-T0301
PAD

(8)  1260390-T0301
PLATE

(9)  T3331040
SCREW, TPT, PAN/HD, M6 X 12, SLV

(10)  1260400-T0301
SEAL

(11)  1260370-T0301
CLUTCH COVER Part information

(12)  3330521-T0301
SCREW, TORX Part information

(13)  3330522-T0301
SCREW, TORX Part information

(14)  1260158-T0301
SPROCKET COVER

(15)  1260028-T0301
GASKET

(16)  1260134-T0301
OIL FILLER CAP Part information

(17)  T3600130
O RING

(18)  3800041-T0301
BEARING, GEARBOX LEVER

(19)  T3600008
OIL SEAL

(20)  T3200082
BOLT, RHHF, M6 X 40, BRIGHT

(21)  3200025-T0301

(22)  T3000101
DOWEL, HOLLOW, 8 X 14

(23)  1260061-T0301
COVER RH

(24)  1260068-T0301
GASKET

(25)  T3205063
BOLT, HHF, LGHTD, M6 X 16, SLV

(25)  T3205063
BOLT, HHF, LGHTD, M6 X 16, SLV

(26)  T3900001
GEAR POSITION INDICATOR LABEL Part information
(26)  T3900440
GEAR POSITION INDICATOR LABEL Part information

(27)  1260123-T0301

(28)  1260520-T0301
(28)  T1260519

(29)  1260521-T0301
(29)  T1260522

(30)  T1260757
GASKET, LH CRANK COVER

(31)  T3330627
SCREW, PAN/HD, TPT, TX, M5 X 12 Part information

(32)  1260139-T0301
COVER RH

(33)  1260136-T0301
GASKET

(34)  3330525-T0301
SCREW CSK HEAD Part information

(35)  T3450071

(36)  T3550021
Part number Description
# 1
1260344-T0301
CLUTCH COVER, BLACK
Contact
# 2
1260450-T0301
FITTING
Contact
# 3
3600045-T0301
O RING
# 4
T1260206
GASKET, CLUTCH COVER
# 5
T3331102
BOLT, HHF, M6 X 25, S/S
# 6
T3000005
DOWEL, DIA 6.0 X 16
# 7
1260380-T0301
PAD
Contact
# 8
1260390-T0301
PLATE
Contact
# 9
T3331040
SCREW, TPT, PAN/HD, M6 X 12, SLV
# 10
1260400-T0301
SEAL
# 11
1260370-T0301
CLUTCH COVER Contact
# 12
3330521-T0301
SCREW, TORX Contact
# 13
3330522-T0301
SCREW, TORX Contact
# 14
1260158-T0301
SPROCKET COVER
Contact
# 15
1260028-T0301
GASKET
# 16
1260134-T0301
OIL FILLER CAP
# 17
T3600130
O RING
# 18
3800041-T0301
BEARING, GEARBOX LEVER
# 19
T3600008
OIL SEAL
# 20
T3200082
BOLT, RHHF, M6 X 40, BRIGHT
Contact
# 21
3200025-T0301
BOLT
# 22
T3000101
DOWEL, HOLLOW, 8 X 14
# 23
1260061-T0301
COVER RH
Contact
# 24
1260068-T0301
GASKET
# 25
T3205063
BOLT, HHF, LGHTD, M6 X 16, SLV
# 26
T3900001
GEAR POSITION INDICATOR LABEL
# 26
T3900440
GEAR POSITION INDICATOR LABEL Contact
# 27
1260123-T0301
COVER LH Contact
# 28
1260520-T0301
PAD Contact
# 28
T1260519
PAD Contact
# 29
1260521-T0301
PLATE Contact
# 29
T1260522
PLATE
# 30
T1260757
GASKET, LH CRANK COVER
# 31
T3330627
SCREW, PAN/HD, TPT, TX, M5 X 12
# 32
1260139-T0301
COVER RH
Contact
# 33
1260136-T0301
GASKET
# 34
3330525-T0301
SCREW CSK HEAD Contact
# 35
T3450071
PLUG Contact
# 36
T3550021
WASHER Contact
Mark the parts and select the numbers you need in the image or the parts list and add them directly to your shopping basket.

Be careful to choose the right amount that you add to your shopping cart.
