TAIL LAMP

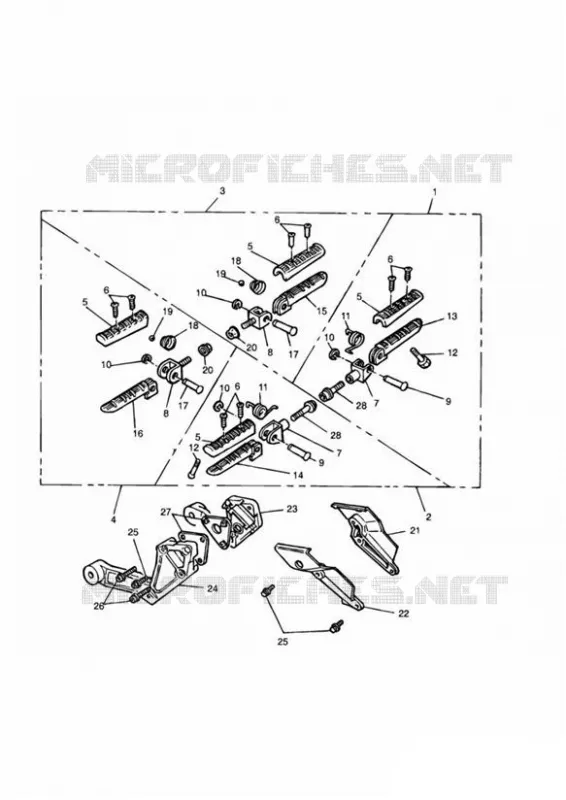

FOOTRESTS & MOUNTINGS FOR TRIUMPH DAYTONA 750 & 1000

LINKAGE CARRIER - ENGINE MOUNTING BOLTS

(1) 2080054-T0301

FOOTREST ASSEMBLY FRONT

(1) 2080073-T0301

FOOTREST ASSEMBLY FRONT

(1) 2080105-T0301

FOOTREST ASSEMBLY FRONT

(2) 2080055-T0301

FOOTREST ASSEMBLY FRONT

(2) 2080106-T0301

FOOTREST ASSEMBLY FRONT

(3) 2080056-T0301

FOOTREST ASSEMBLY REAR

(4) 2080057-T0301

FOOTREST ASSEMBLY REAR

(5) 2080031-T0301

RUBBER

(5) 2080031-T0301

RUBBER

(5) 2080031-T0301

RUBBER

(5) 2080031-T0301

RUBBER

(6) T3330696

SCREW, BUT/HD, M5 X 16, SLV

(6) T3330696

SCREW, BUT/HD, M5 X 16, SLV

(6) T3330696

SCREW, BUT/HD, M5 X 16, SLV

(6) T3330696

SCREW, BUT/HD, M5 X 16, SLV

(7) 2080023-T0301

PIVOT BRACKET

(7) 2080023-T0301

PIVOT BRACKET

(7) 2080071-T0301

BRACKET PIVOT

(7) 2080071-T0301

BRACKET PIVOT

(7) 2080072-T0301

BRACKET PIVOT

(7) 2080072-T0301

BRACKET PIVOT

(8) 2080024-T0301

PIVOT BRACKET

(8) 2080024-T0301

PIVOT BRACKET

(9) T2080722

PIVOT PIN, FOOTREST

(9) T2080722

PIVOT PIN, FOOTREST

(10) T3500210

CIRCLIP, EXT, 8 X 1

(10) T3500210

CIRCLIP, EXT, 8 X 1

(10) T3500210

CIRCLIP, EXT, 8 X 1

(10) T3500210

CIRCLIP, EXT, 8 X 1

(11) T2080819

RETURN SPRING, FOOTREST

(11) T2080819

RETURN SPRING, FOOTREST

(12) 2080033-T0301

PEG

(12) 2080033-T0301

PEG

(13) 2080027-T0301

FOOTREST

(14) 2080028-T0301

FOOTREST

(15) 2080029-T0301

FOOTREST

(16) 2080030-T0301

FOOTREST

(17) T2080721

PIVOT PIN, FOOTREST

(17) T2080721

PIVOT PIN, FOOTREST

(18) T2080724

SPRING, FOOTREST (REAR)

(18) T2080724

SPRING, FOOTREST (REAR)

(19) T2080725

DETENT BALL

(19) T2080725

DETENT BALL

(20) T3350250

LOCKNUT, FLANGED, M10

(20) T3350250

LOCKNUT, FLANGED, M10

(21) 2080069-T0301

CONTROL PLATE LH

(21) 2080077-T0301

CONTROL PLATE LH

(22) 2080068-T0301

CONTROL PLATE RH

(22) 2080076-T0301

CONTROL PLATE RH

(23) 2080079-T0301

FOOTREST HANGER

(23) 2080087-T0301

FOOTREST HANGER

(23) 2080121-T0301

FOOTREST HANGER

(23) 2080200-T0301

FOOTREST HANGER

(24) 2080078-T0301

FOOTREST HANGER

(24) 2080086-T0301

FOOTREST HANGER

(24) 2080122-T0301

FOOTREST HANGER

(24) 2080190-T0301

FOOTREST HANGER

(25) T3202319

BOLT, HHF, M8 X 35, SLV

(25) T3202319

BOLT, HHF, M8 X 35, SLV

(26) T3200042

BOLT, M8 X 55

(27) 2070726-T0301

CLAMP

(28) 3330600-T0301

SCREW

(28) 3330600-T0301

SCREW

	Part number	Description	Qty
# 1	2080073-T0301	FOOTREST ASSEMBLY FRONT	£73,22
# 1	2080054-T0301	FOOTREST ASSEMBLY FRONT	Not available	£0,00
# 1	2080105-T0301	FOOTREST ASSEMBLY FRONT	Not available	£0,00
# 2	2080106-T0301	FOOTREST ASSEMBLY FRONT	£70,75
# 2	2080055-T0301	FOOTREST ASSEMBLY FRONT	Not available	£0,00
# 3	2080056-T0301	FOOTREST ASSEMBLY REAR	£76,96
# 4	2080057-T0301	FOOTREST ASSEMBLY REAR	Not available	£0,00
# 5	2080031-T0301	RUBBER	£21,35
# 6	T3330696	SCREW, BUT/HD, M5 X 16, SLV	£3,71
# 7	2080023-T0301	PIVOT BRACKET	Not available	£0,00
# 7	2080071-T0301	BRACKET PIVOT	Not available	£0,00
# 7	2080072-T0301	BRACKET PIVOT	Not available	£0,00
# 8	2080024-T0301	PIVOT BRACKET	Not available	£0,00
# 9	T2080722	PIVOT PIN, FOOTREST	£4,22
# 10	T3500210	CIRCLIP, EXT, 8 X 1	£1,36
# 11	T2080819	RETURN SPRING, FOOTREST	£4,10
# 12	2080033-T0301	PEG	Not available	£0,00
# 13	2080027-T0301	FOOTREST	£25,57
# 14	2080028-T0301	FOOTREST	£25,57
# 15	2080029-T0301	FOOTREST	£38,47
# 16	2080030-T0301	FOOTREST	£38,47
# 17	T2080721	PIVOT PIN, FOOTREST	£4,22
# 18	T2080724	SPRING, FOOTREST (REAR)	£1,38
# 19	T2080725	DETENT BALL	£1,13
# 20	T3350250	LOCKNUT, FLANGED, M10	£2,92
# 21	2080069-T0301	CONTROL PLATE LH	Not available	£0,00
# 21	2080077-T0301	CONTROL PLATE LH	Not available	£0,00
# 22	2080068-T0301	CONTROL PLATE RH	Not available	£0,00
# 22	2080076-T0301	CONTROL PLATE RH	Not available	£0,00
# 23	2080087-T0301	FOOTREST HANGER	£8,14
# 23	2080121-T0301	FOOTREST HANGER	£8,14
# 23	2080079-T0301	FOOTREST HANGER	Not available	£0,00
# 23	2080200-T0301	FOOTREST HANGER	Not available	£0,00
# 24	2080078-T0301	FOOTREST HANGER	Not available	£0,00
# 24	2080086-T0301	FOOTREST HANGER	Not available	£0,00
# 24	2080122-T0301	FOOTREST HANGER	Not available	£0,00
# 24	2080190-T0301	FOOTREST HANGER	Not available	£0,00
# 25	T3202319	BOLT, HHF, M8 X 35, SLV	£1,72
# 26	T3200042	BOLT, M8 X 55	Not available	£0,00
# 27	2070726-T0301	CLAMP	Not available	£0,00
# 28	3330600-T0301	SCREW	Not available	£0,00

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Triumph. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FOOTRESTS & MOUNTINGS of your Triumph DAYTONA 750 & 1000 of Daytona-others. Let us know if you have any questions.
