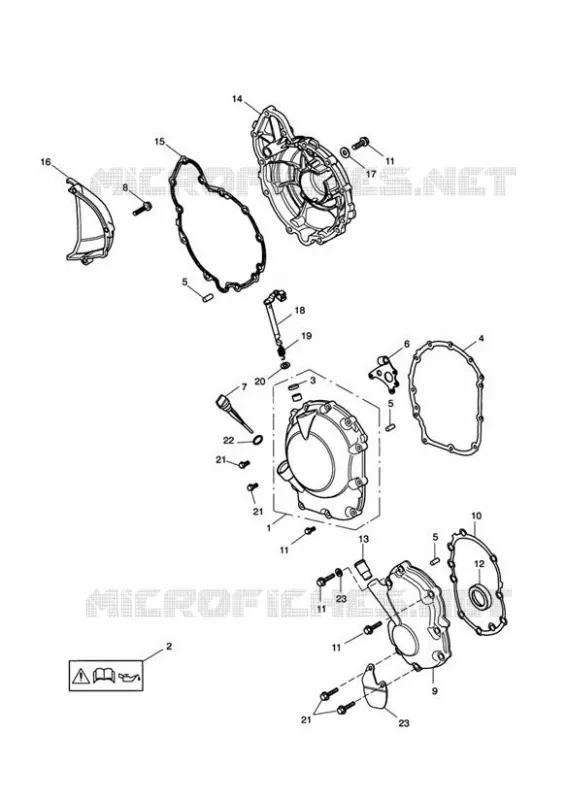

ENGINE COVERS VIN FROM 210262 FOR TRIUMPH SPEED FOUR

ENGINE COVERS VIN FROM 210262 for Triumph SPEED FOUR

(1)  T1261003
CLUTCH COVER

(2)  T3900302
LABEL, OIL & FILTER

(3)  T3600095
DUST SEAL

(4)  T1261093
GASKET, CLUTCH COVER

(5)  T3000005
DOWEL, DIA 6.0 X 16

(5)  T3000005
DOWEL, DIA 6.0 X 16

(5)  T3000005
DOWEL, DIA 6.0 X 16

(6)  T1170649
BRACKET, CLUTCH CABLE

(7)  T1261123
FILLER CAP & DIPSTICK

(8)  T3331103
BOLT, HHF, M6 X 28, S/S

(9)  T1261220
BREATHER COVER

(10)  T1261094
GASKET, BREATHER COVER

(11)  T3331102
BOLT, HHF, M6 X 25, S/S

(11)  T3331102
BOLT, HHF, M6 X 25, S/S

(11)  T3331102
BOLT, HHF, M6 X 25, S/S

(11)  T3331102
BOLT, HHF, M6 X 25, S/S

(12)  T3600242
OIL SEAL

(13)  1260480-T0301
FITTING, LH, CRANKSHAFT COVER

(14)  T1261400
ALTERNATOR COVER

(15)  T1261092
GASKET, ALTERNATOR COVER

(16)  T1261090
SPROCKET COVER

(17)  T3550542
WASHER, CU, OD12.5 X ID6.4

(18)  T1170069
LIFTER ARM ASSY

(19)  T1170234
RETURN SPRING

(20)  T3555014
WASHER, 13 X 18 X 1

(21)  T3331103
BOLT, HHF, M6 X 28, S/S

(21)  T3331103
BOLT, HHF, M6 X 28, S/S

(21)  T3331103
BOLT, HHF, M6 X 28, S/S

(22)  T3600136
O RING

(23)  T1261195
COVER, OIL PRESSURE SWITCH

(23)  T1261195
COVER, OIL PRESSURE SWITCH
Part number Description
# 1
T1261003
CLUTCH COVER
Contact
# 2
T3900302
LABEL, OIL & FILTER
# 3
T3600095
DUST SEAL
# 4
T1261093
GASKET, CLUTCH COVER
# 5
T3000005
DOWEL, DIA 6.0 X 16
# 6
T1170649
BRACKET, CLUTCH CABLE
Contact
# 7
T1261123
FILLER CAP & DIPSTICK
# 8
T3331103
BOLT, HHF, M6 X 28, S/S
# 9
T1261220
BREATHER COVER
# 10
T1261094
GASKET, BREATHER COVER
# 11
T3331102
BOLT, HHF, M6 X 25, S/S
# 12
T3600242
OIL SEAL
# 13
1260480-T0301
FITTING, LH, CRANKSHAFT COVER
Contact
# 14
T1261400
ALTERNATOR COVER
# 15
T1261092
GASKET, ALTERNATOR COVER
Contact
# 16
T1261090
SPROCKET COVER
# 17
T3550542
WASHER, CU, OD12.5 X ID6.4
# 18
T1170069
LIFTER ARM ASSY
Contact
# 19
T1170234
RETURN SPRING
# 20
T3555014
WASHER, 13 X 18 X 1
# 21
T3331103
BOLT, HHF, M6 X 28, S/S
# 22
T3600136
O RING
# 23
T1261195
COVER, OIL PRESSURE SWITCH
Mark the parts and select the numbers you need in the image or the parts list and add them directly to your shopping basket.

Be careful to choose the right amount that you add to your shopping cart.
