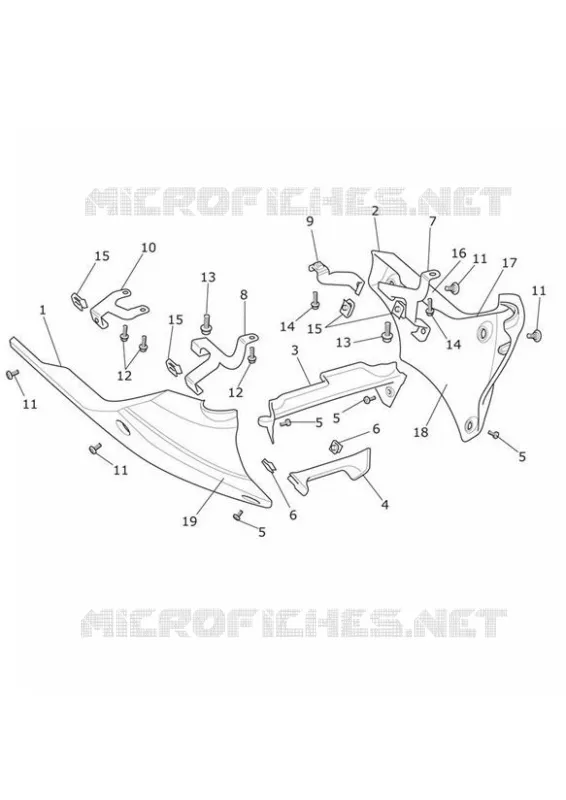

Parts diagram

BELLY PAN FOR TRIUMPH SPEED TRIPLE R

DECALS

(1) T2303143-NS

PANEL, BELLYPAN, RH

(1) T2303143-NW

PANEL, BELLYPAN, RH

(1) T2303143-PG

PANEL, BELLYPAN, RH

(1) T2303143-PR

PANEL, BELLYPAN, RH

(2) T2303144-NS

PANEL, BELLYPAN, LH

(2) T2303144-NW

PANEL, BELLYPAN, LH

(2) T2303144-PG

PANEL, BELLYPAN, LH

(2) T2303144-PR

PANEL, BELLYPAN, LH

(3) T2303102

MOULDING, PANEL, CENTRE, UPPER

(4) T2303103

MOULDING, PANEL, CENTRE, LOWER

(5) T3330217

SCREW, M5 X 10, S/S

(5) T3330217

SCREW, M5 X 10, S/S

(5) T3330217

SCREW, M5 X 10, S/S

(5) T3330217

SCREW, M5 X 10, S/S

(6) T3351002

NUT, CAPTIVE, U-TYPE, M5, SLV

(6) T3351002

NUT, CAPTIVE, U-TYPE, M5, SLV

(7) T2303104

BRACKET, BELLYPAN, FRONT, LH

(8) T2303105

BRACKET, BELLYPAN, FRONT, RH

(9) T2303107

BRACKET, BELLYPAN, REAR, LH

(10) T2303106

BRACKET, BELLYPAN, REAR, RH

(11) T3330858

BOLT, BUT/HD, M6 X 15, SHLD, SLV

(11) T3330858

BOLT, BUT/HD, M6 X 15, SHLD, SLV

(11) T3330858

BOLT, BUT/HD, M6 X 15, SHLD, SLV

(11) T3330858

BOLT, BUT/HD, M6 X 15, SHLD, SLV

(12) T3205063

BOLT, HHF, LGHTD, M6 X 16, SLV

(12) T3205063

BOLT, HHF, LGHTD, M6 X 16, SLV

(13) T3205156

BOLT, HHF, LGHTD, M8 X 18, SLV

(13) T3205156

BOLT, HHF, LGHTD, M8 X 18, SLV

(14) T3205066

BOLT, HHF, LGHTD, M6 X 20, SLV

(14) T3205066

BOLT, HHF, LGHTD, M6 X 20, SLV

(15) T3350111

NUT, CAPTIVE, M6

(15) T3350111

NUT, CAPTIVE, M6

(15) T3350111

NUT, CAPTIVE, M6

(16) T2302183

PROTECTIVE FILM, LOWER

(17) T2302182

PROTECTIVE FILM, UPPER

(18) T2307434

REFLECTIVE HEAT TAPE, LHS

(19) T2307433

REFLECTIVE HEAT TAPE, RHS

	Part number	Description	Qty
# 1	T2303143-NS	PANEL, BELLYPAN, RH	£154,39
# 1	T2303143-NW	PANEL, BELLYPAN, RH	£148,00
# 1	T2303143-PG	PANEL, BELLYPAN, RH	£115,43
# 1	T2303143-PR	PANEL, BELLYPAN, RH	£148,00
# 2	T2303144-NS	PANEL, BELLYPAN, LH	£106,75
# 2	T2303144-NW	PANEL, BELLYPAN, LH	£148,00
# 2	T2303144-PG	PANEL, BELLYPAN, LH	£154,39
# 2	T2303144-PR	PANEL, BELLYPAN, LH	£148,00
# 3	T2303102	MOULDING, PANEL, CENTRE, UPPER	£35,38
# 4	T2303103	MOULDING, PANEL, CENTRE, LOWER	£26,63
# 5	T3330217	SCREW, M5 X 10, S/S	£3,97
# 6	T3351002	NUT, CAPTIVE, U-TYPE, M5, SLV	£1,55
# 7	T2303104	BRACKET, BELLYPAN, FRONT, LH	£8,50
# 8	T2303105	BRACKET, BELLYPAN, FRONT, RH	£12,10
# 9	T2303107	BRACKET, BELLYPAN, REAR, LH	£6,46
# 10	T2303106	BRACKET, BELLYPAN, REAR, RH	£5,33
# 11	T3330858	BOLT, BUT/HD, M6 X 15, SHLD, SLV	£1,67
# 12	T3205063	BOLT, HHF, LGHTD, M6 X 16, SLV	£2,29
# 13	T3205156	BOLT, HHF, LGHTD, M8 X 18, SLV	£1,06
# 14	T3205066	BOLT, HHF, LGHTD, M6 X 20, SLV	£2,98
# 15	T3350111	NUT, CAPTIVE, M6	£3,23
# 16	T2302183	PROTECTIVE FILM, LOWER	£7,13
# 17	T2302182	PROTECTIVE FILM, UPPER	£7,13
# 18	T2307434	REFLECTIVE HEAT TAPE, LHS	£7,64
# 19	T2307433	REFLECTIVE HEAT TAPE, RHS	£7,64

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Triumph. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the BELLY PAN of your Triumph SPEED TRIPLE R of Speed-Triple. Let us know if you have any questions.
