CRANKCASE

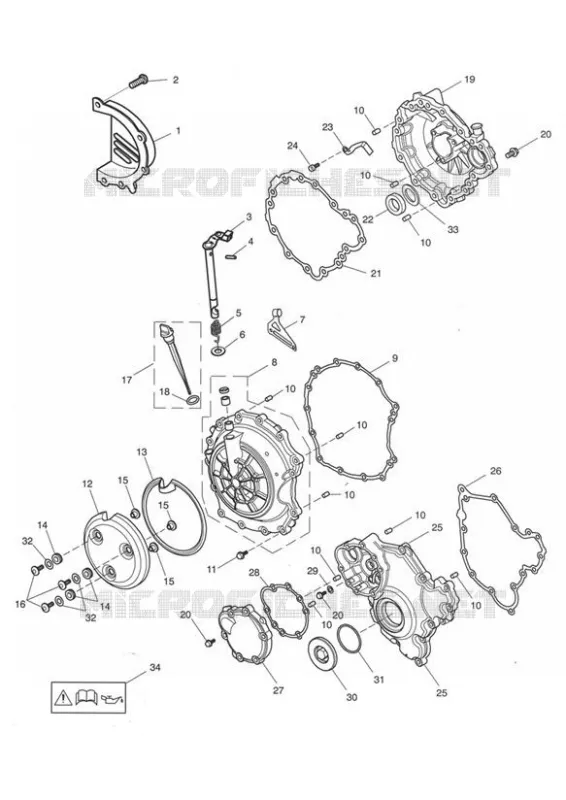

ENGINE COVERS FOR TRIUMPH SPEED TRIPLE

OIL COOLER

(1) T1261020

SPROCKET COVER

(2) T3202304

BOLT, RHHF, M6 X 20, SLV

(2) T3331101

BOLT, HHF, M6 X 20, S/S

(3) T1170662

CLUTCH LIFTER ARM

(3) T1170683

LIFTER ARM, CLUTCH

(4) T3000014

SPIROL PIN

(5) T1170234

RETURN SPRING

(6) T3555014

WASHER, 13 X 18 X 1

(7) T1170681

HOLDER

(7) T1171990

HOLDER, CLUTCH CABLE

(8) T1261160

CLUTCH COVER ASSEMBLY

(9) T1261097

GASKET, CLUTCH COVER

(10) T3000005

DOWEL, DIA 6.0 X 16

(10) T3000005

DOWEL, DIA 6.0 X 16

(10) T3000005

DOWEL, DIA 6.0 X 16

(10) T3000005

DOWEL, DIA 6.0 X 16

(10) T3000005

DOWEL, DIA 6.0 X 16

(10) T3000005

DOWEL, DIA 6.0 X 16

(10) T3000005

DOWEL, DIA 6.0 X 16

(10) T3000005

DOWEL, DIA 6.0 X 16

(10) T3000005

DOWEL, DIA 6.0 X 16

(10) T3000005

DOWEL, DIA 6.0 X 16

(11) T3202303

BOLT, RHHF, M6 X 28, SLV

(11) T3331103

BOLT, HHF, M6 X 28, S/S

(12) T1261165

OUTER CASING

(13) T1261166

GASKET

(14) T3020153

GROMMET, 13 X 3 X 10

(14) T3020153

GROMMET, 13 X 3 X 10

(15) T3010702

FLANGED SLEEVE, 6.4 X 10 X 8.5

(15) T3010702

FLANGED SLEEVE, 6.4 X 10 X 8.5

(15) T3010702

FLANGED SLEEVE, 6.4 X 10 X 8.5

(16) T3330727

SCREW, BUT/HD, M6 X 20, SLV

(17) T1261180

OIL FILLER CAP & DIPSTICK

(18) T3600136

O RING

(19) T1260003

COVER

(20) T3200190

BOLT, RHHF, M6 X 25, SLV

(20) T3200190

BOLT, RHHF, M6 X 25, SLV

(20) T3200190

BOLT, RHHF, M6 X 25, SLV

(20) T3331102

BOLT, HHF, M6 X 25, S/S

(20) T3331102

BOLT, HHF, M6 X 25, S/S

(20) T3331102

BOLT, HHF, M6 X 25, S/S

(21) T1261098

GASKET, ALTERNATOR COVER

(22) T3600089

OIL SEAL, ROTARY

(23) T1261217

PLATE, WIRE RETAINER

(24) T3050341

SCREW, CAP/HD, M5 X 10, SLV

(25) T1261221

KIT, CRANK COVER, BLACK

(25) T1261221

KIT, CRANK COVER, BLACK

(26) T1261103

GASKET, CRANK COVER

(27) T1261202

STARTER COVER, BLACK

(28) T1261104

GASKET, STARTER COVER

(29) T3550403

WASHER, M6

(30) T1261223

PLUG, M45 X 1.25, BLACK

(31) T3600222

O RING

(32) T3555026

WASHER, 6.4 X 18 X 1.6

(32) T3555026

WASHER, 6.4 X 18 X 1.6

(33) T1260858

SPACER

(34) T3900136

LABEL, ENGINE OIL

	Part number	Description	Qty
# 1	T1261020	SPROCKET COVER	£34,14
# 2	T3202304	BOLT, RHHF, M6 X 20, SLV	£3,48
# 2	T3331101	BOLT, HHF, M6 X 20, S/S	Not available	£0,00
# 3	T1170683	LIFTER ARM, CLUTCH	£64,55
# 3	T1170662	CLUTCH LIFTER ARM	Not available	£0,00
# 4	T3000014	SPIROL PIN	£0,50
# 5	T1170234	RETURN SPRING	£3,85
# 6	T3555014	WASHER, 13 X 18 X 1	£0,85
# 7	T1171990	HOLDER, CLUTCH CABLE	£5,04
# 7	T1170681	HOLDER	Not available	£0,00
# 8	T1261160	CLUTCH COVER ASSEMBLY	£247,00
# 9	T1261097	GASKET, CLUTCH COVER	£6,82
# 10	T3000005	DOWEL, DIA 6.0 X 16	£0,74
# 11	T3202303	BOLT, RHHF, M6 X 28, SLV	£1,06
# 11	T3331103	BOLT, HHF, M6 X 28, S/S	£0,72
# 12	T1261165	OUTER CASING	£34,75
# 13	T1261166	GASKET	£4,28
# 14	T3020153	GROMMET, 13 X 3 X 10	£1,25
# 15	T3010702	FLANGED SLEEVE, 6.4 X 10 X 8.5	£3,77
# 16	T3330727	SCREW, BUT/HD, M6 X 20, SLV	£2,22
# 17	T1261180	OIL FILLER CAP & DIPSTICK	£11,34
# 18	T3600136	O RING	£0,68
# 19	T1260003	COVER	£127,84
# 20	T3200190	BOLT, RHHF, M6 X 25, SLV	£1,72
# 20	T3331102	BOLT, HHF, M6 X 25, S/S	£1,93
# 21	T1261098	GASKET, ALTERNATOR COVER	£11,28
# 22	T3600089	OIL SEAL, ROTARY	£32,89
# 23	T1261217	PLATE, WIRE RETAINER	£2,54
# 24	T3050341	SCREW, CAP/HD, M5 X 10, SLV	£2,38
# 25	T1261221	KIT, CRANK COVER, BLACK	Not available	£0,00
# 26	T1261103	GASKET, CRANK COVER	£11,06
# 27	T1261202	STARTER COVER, BLACK	£95,56
# 28	T1261104	GASKET, STARTER COVER	£11,28
# 29	T3550403	WASHER, M6	Not available	£0,00
# 30	T1261223	PLUG, M45 X 1.25, BLACK	£21,85
# 31	T3600222	O RING	£7,19
# 32	T3555026	WASHER, 6.4 X 18 X 1.6	£0,85
# 33	T1260858	SPACER	£12,23
# 34	T3900136	LABEL, ENGINE OIL	£1,87

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Triumph. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the ENGINE COVERS of your Triumph SPEED TRIPLE of Speed-Triple. Let us know if you have any questions.
