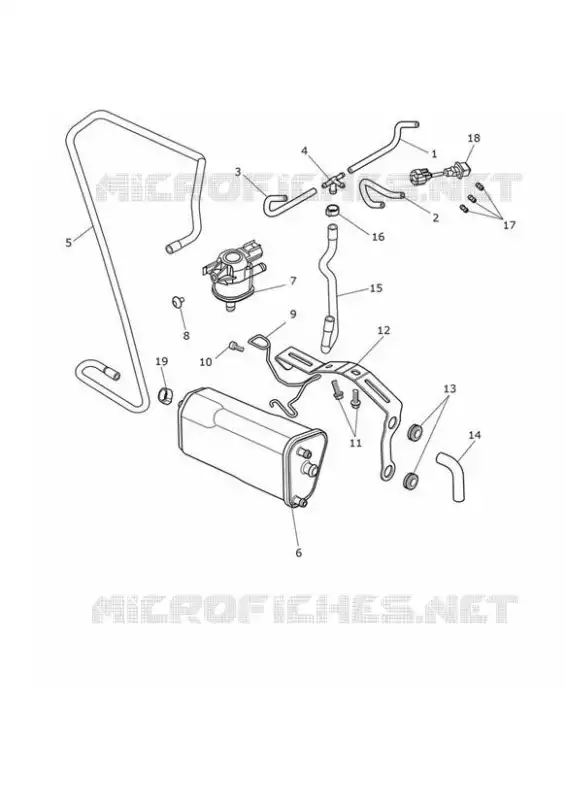

EVAPORATIVE LOSS CONTROL SYSTEM FOR TRIUMPH TIGER 800 XCX

EXHAUST SYSTEM

(1) T1292075

HOSE, THROTTLE BODY, CYL 1

(2) T1292076

HOSE, THROTTLE BODY, CYL 2

(3) T1292077

HOSE, THROTTLE BODY, CYL 3

(4) T1242929

CONNECTOR, 4 WAY

(5) T1242474

HOSE, EVAP CANNISTER

(6) T2403010

CARBON CANNISTER

(7) T1248990

PURGE VALVE

(8) T3332568

SCREW, BUT/HD, M5 X 8, SLV

(9) T1242457

WIRE GUIDE, 2.5 DIA

(10) T3050341

SCREW, CAP/HD, M5 X 10, SLV

(11) T3205063

BOLT, HHF, LGHTD, M6 X 16, SLV

(12) T1249072

BRACKET, EVAP CANNISTER

(13) T3020085

GROMMET, DIA 18X1X9

(14) T1240187

HOSE, EVAP VENT

(15) T1242962

HOSE, EVAP, PURGE

(16) T3700077

CLIP, 10.5 RER OETIKER

(17) T1241890

RESTRICTOR, PURGE, EVAP

(18) T2502710

FLYLEAD, PURGE VALVE

(19) T3700440

CLIP, HOSE, 11-12.5MM

	Part number	Description	Qty
# 1	T1292075	HOSE, THROTTLE BODY, CYL 1	£2,12
# 2	T1292076	HOSE, THROTTLE BODY, CYL 2	£2,12
# 3	T1292077	HOSE, THROTTLE BODY, CYL 3	£2,12
# 4	T1242929	CONNECTOR, 4 WAY	£7,13
# 5	T1242474	HOSE, EVAP CANNISTER	£16,27
# 6	T2403010	CARBON CANNISTER	£73,22
# 7	T1248990	PURGE VALVE	£43,44
# 8	T3332568	SCREW, BUT/HD, M5 X 8, SLV	£2,54
# 9	T1242457	WIRE GUIDE, 2.5 DIA	£4,42
# 10	T3050341	SCREW, CAP/HD, M5 X 10, SLV	£2,38
# 11	T3205063	BOLT, HHF, LGHTD, M6 X 16, SLV	£2,29
# 12	T1249072	BRACKET, EVAP CANNISTER	£63,30
# 13	T3020085	GROMMET, DIA 18X1X9	£1,38
# 14	T1240187	HOSE, EVAP VENT	£9,68
# 15	T1242962	HOSE, EVAP, PURGE	£13,04
# 16	T3700077	CLIP, 10.5 RER OETIKER	£2,60
# 17	T1241890	RESTRICTOR, PURGE, EVAP	£7,40
# 18	T2502710	FLYLEAD, PURGE VALVE	£15,20
# 19	T3700440	CLIP, HOSE, 11-12.5MM	£3,55

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Triumph. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the EVAPORATIVE LOSS CONTROL SYSTEM of your Triumph Tiger 800 XCX of 800. Let us know if you have any questions.
