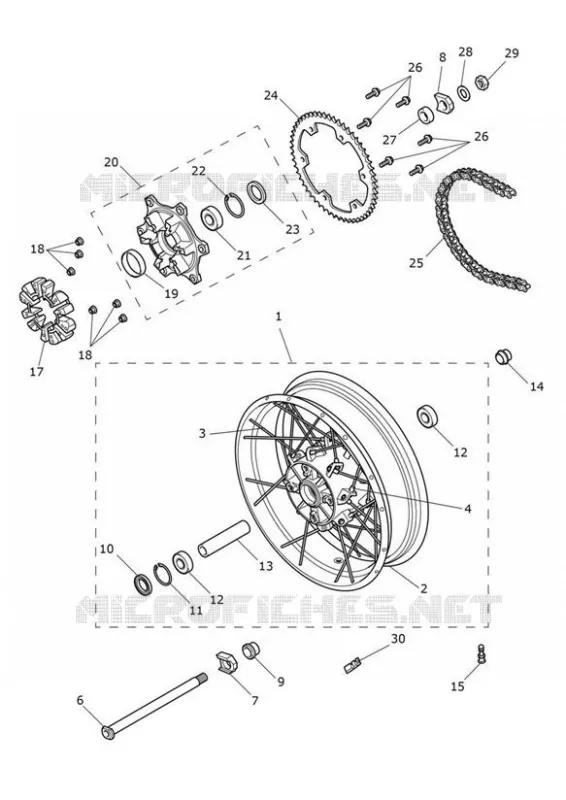

REAR WHEEL FOR TRIUMPH TIGER 900 RALLY

REAR WHEEL for Triumph Tiger 900 Rally

(1)  T2018881
REAR WHEEL ASSEMBLY

(2)  T2018883
RIM, REAR WHEEL

(3)  T2011274
SPOKE, 229.8MM

(4)  T2000598
NIPPLE, SPOKE, LOCKING, SLV

(6)  T2015060
REAR WHEEL SPINDLE

(7)  T2010338
CHAIN ADJUSTER BLOCK, RH

(8)  T2010226
CHAIN ADJUSTER BLOCK, LH

(9)  T2012048
TOP HAT SPACER, 22.4 LONG

(10)  T3600701
OIL SEAL, DC 28 47 7

(11)  T3500402
CIRCLIP, INT DIA 47

(12)  T3800703
BEARING, BALL, 20 47 14

(12)  T3800703
BEARING, BALL, 20 47 14

(13)  T2003515
SPACER, WHEEL, 20 127.2

(14)  T2010492
SPACER, STEPPED

(15)  T2006635
VALVE ASSY, ALUM, 90, BLACK

(17)  T2010650
CUSH DRIVE RUBBER

(18)  T3350004
LOCKNUT, FLANGED, M8 X 1.25

(18)  T3350004
LOCKNUT, FLANGED, M8 X 1.25

(19)  T2010630
BEARING, RING

(20)  T2011179
SPROCKET CARRIER ASSY, GREY

(21)  T3800029
BEARING BALL, 25 52 15

(22)  T3500203
CIRCLIP, INT, 52 X 2

(23)  T3600073
OIL SEAL, 35 52 6

(24)  T2011199
REAR SPROCKET, 50T

(25)  T2011493
FINAL DRIVE CHAIN

(26)  T3205790
BOLT, HHF, M8 X 25, SLV

(26)  T3205790
BOLT, HHF, M8 X 25, SLV

(27)  T2010647
SPACER TUBE, 35 X 20 X 12.5

(28)  T3555035
WASHER, 19 X 34 X 3

(29)  T3350118
LOCKNUT, PLAIN, M18

(30)  T2005893
WHEEL WEIGHT, 25G, BLACK Part information
(30)  T2006003
WHEEL WEIGHT, 30G, BLACK Part information
(30)  T2006794
WHEEL WEIGHT, 20G, BLACK Part information
(30)  T2007102
WHEEL WEIGHT, 5G, BLACK Part information
(30)  T2007771
WHEEL WEIGHT, 10G, BLACK Part information
(30)  T2009111
WHEEL WEIGHT, 15G, BLACK Part information
Part number Description Unit Price Incl. Tax Qty
# 1

T2018881

REAR WHEEL ASSEMBLY
# 2

T2018883

RIM, REAR WHEEL
# 3

T2011274

SPOKE, 229.8MM
# 4

T2000598

NIPPLE, SPOKE, LOCKING, SLV
# 6

T2015060

REAR WHEEL SPINDLE
# 7

T2010338

CHAIN ADJUSTER BLOCK, RH
# 8

T2010226

CHAIN ADJUSTER BLOCK, LH
# 9

T2012048

TOP HAT SPACER, 22.4 LONG
# 10

T3600701

OIL SEAL, DC 28 47 7
# 11

T3500402

CIRCLIP, INT DIA 47
# 12

T3800703

BEARING, BALL, 20 47 14
# 13

T2003515

SPACER, WHEEL, 20 127.2
# 14

T2010492

SPACER, STEPPED
# 15

T2006635

VALVE ASSY, ALUM, 90, BLACK
# 17

T2010650

CUSH DRIVE RUBBER
# 18

T3350004

LOCKNUT, FLANGED, M8 X 1.25
# 19

T2010630

BEARING, RING
# 20

T2011179

SPROCKET CARRIER ASSY, GREY
Contact
# 21

T3800029

BEARING BALL, 25 52 15
# 22

T3500203

CIRCLIP, INT, 52 X 2
# 23

T3600073

OIL SEAL, 35 52 6
# 24

T2011199

REAR SPROCKET, 50T
# 25

T2011493

FINAL DRIVE CHAIN
# 26

T3205790

BOLT, HHF, M8 X 25, SLV
# 27

T2010647

SPACER TUBE, 35 X 20 X 12.5
# 28

T3555035

WASHER, 19 X 34 X 3
# 29

T3350118

LOCKNUT, PLAIN, M18
# 30

T2005893

WHEEL WEIGHT, 25G, BLACK
Contact
# 30

T2006003

WHEEL WEIGHT, 30G, BLACK
Contact
# 30

T2006794

WHEEL WEIGHT, 20G, BLACK
Contact
# 30

T2007102

WHEEL WEIGHT, 5G, BLACK
Contact
# 30

T2007771

WHEEL WEIGHT, 10G, BLACK
Contact
# 30

T2009111

WHEEL WEIGHT, 15G, BLACK
Contact
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Triumph. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Triumph, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
