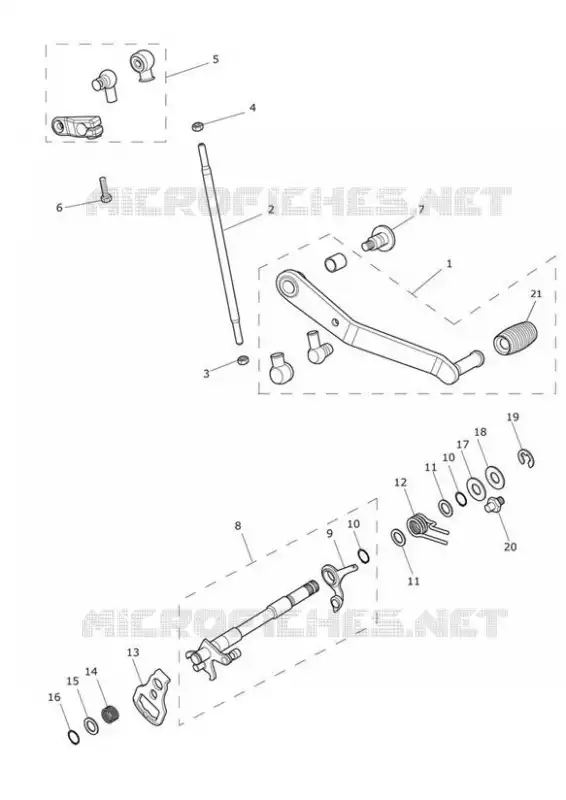

GEAR CHANGE MECHANISM FOR TRIUMPH TIGER 800 XCX

GEAR SELECTOR DRUM

(1) T2088000

GEARCHANGE ASSEMBLY

(2) T2082882

GEARCHANGE ROD

(3) T3350300

NUT, M6 X 1.0, SLV

(4) T3350304

NUT, LH, M6, SLV

(5) T2088004

CLAMP ASSY, LINKAGE

(6) T3205066

BOLT, HHF, LGHTD, M6 X 20, SLV

(7) T3331614

BOLT, SHLD, M8, SLV ENC

(8) T1190106

GEARCHANGE MECHANISM ASSEMBLY

(9) T1190107

DETENT ARM ASSEMBLY

(10) T3502535

CIRCLIP, DIN 471, DIA. 14.0

(10) T3502535

CIRCLIP, DIN 471, DIA. 14.0

(11) T3550236

WASHER, 14 X 20 X 1.6

(11) T3550236

WASHER, 14 X 20 X 1.6

(12) T1193333

SPRING, GEARCHANGE, RETURN

(13) T1194900

PIVOT PLATE

(14) T1190123

SPRING, PIVOT PLATE

(15) T3555003

WASHER, 12 X 18 X 1.2

(16) T3500068

CIRCLIP, DIN 471, DIA 12

(17) T3551056

WASHER, 14.5 X 25 X 1.5, STEEL

(18) T3550090

WASHER, THRUST

(19) T3500044

E CIRCLIP

(20) T1190003

PIN, SPRING ABUTMENT

(21) T2080766

RUBBER, GEARCHANGE PEDAL

	Part number	Description	Qty
# 1	T2088000	GEARCHANGE ASSEMBLY	£117,92
# 2	T2082882	GEARCHANGE ROD	£20,12
# 3	T3350300	NUT, M6 X 1.0, SLV	£0,65
# 4	T3350304	NUT, LH, M6, SLV	£1,00
# 5	T2088004	CLAMP ASSY, LINKAGE	£73,22
# 6	T3205066	BOLT, HHF, LGHTD, M6 X 20, SLV	£2,98
# 7	T3331614	BOLT, SHLD, M8, SLV ENC	£6,59
# 8	T1190106	GEARCHANGE MECHANISM ASSEMBLY	Not available	£0,00
# 9	T1190107	DETENT ARM ASSEMBLY	£15,95
# 10	T3502535	CIRCLIP, DIN 471, DIA. 14.0	£1,25
# 11	T3550236	WASHER, 14 X 20 X 1.6	£1,93
# 12	T1193333	SPRING, GEARCHANGE, RETURN	£3,10
# 13	T1194900	PIVOT PLATE	£30,59
# 14	T1190123	SPRING, PIVOT PLATE	£8,50
# 15	T3555003	WASHER, 12 X 18 X 1.2	£0,92
# 16	T3500068	CIRCLIP, DIN 471, DIA 12	£1,25
# 17	T3551056	WASHER, 14.5 X 25 X 1.5, STEEL	Not available	£0,00
# 18	T3550090	WASHER, THRUST	£2,69
# 19	T3500044	E CIRCLIP	£0,62
# 20	T1190003	PIN, SPRING ABUTMENT	£12,14
# 21	T2080766	RUBBER, GEARCHANGE PEDAL	£6,02

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Triumph. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the GEAR CHANGE MECHANISM of your Triumph Tiger 800 XCX of 800. Let us know if you have any questions.
